ℹ Product Information

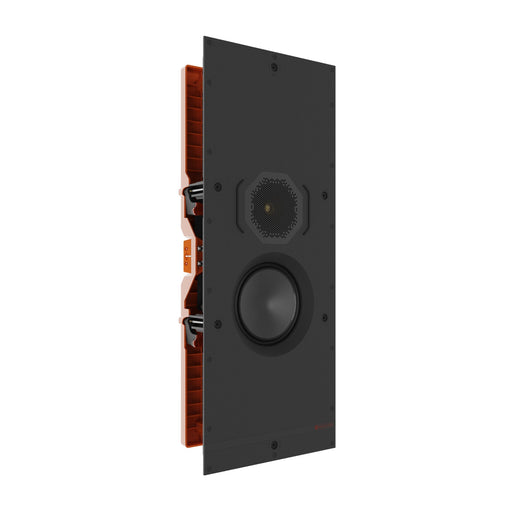

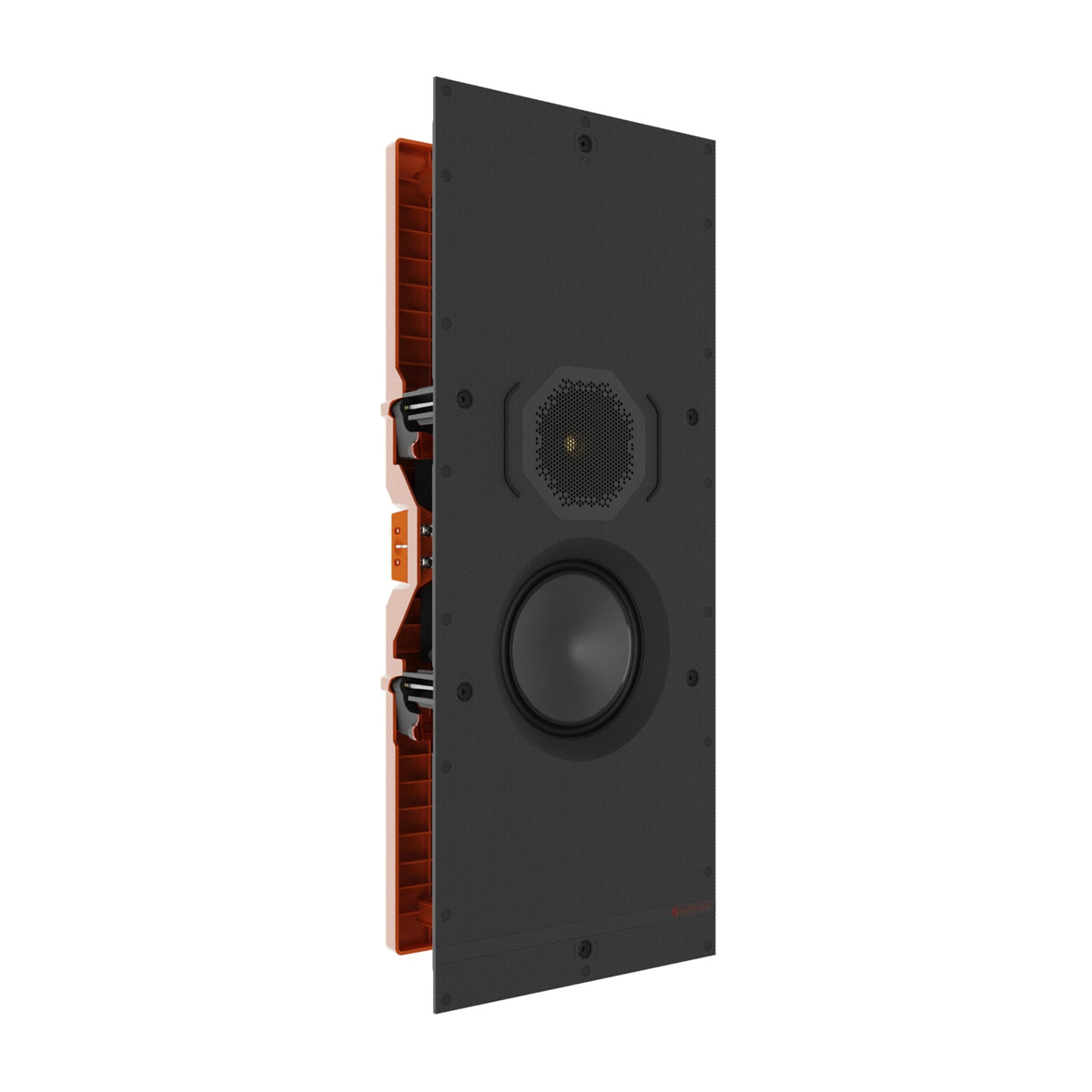

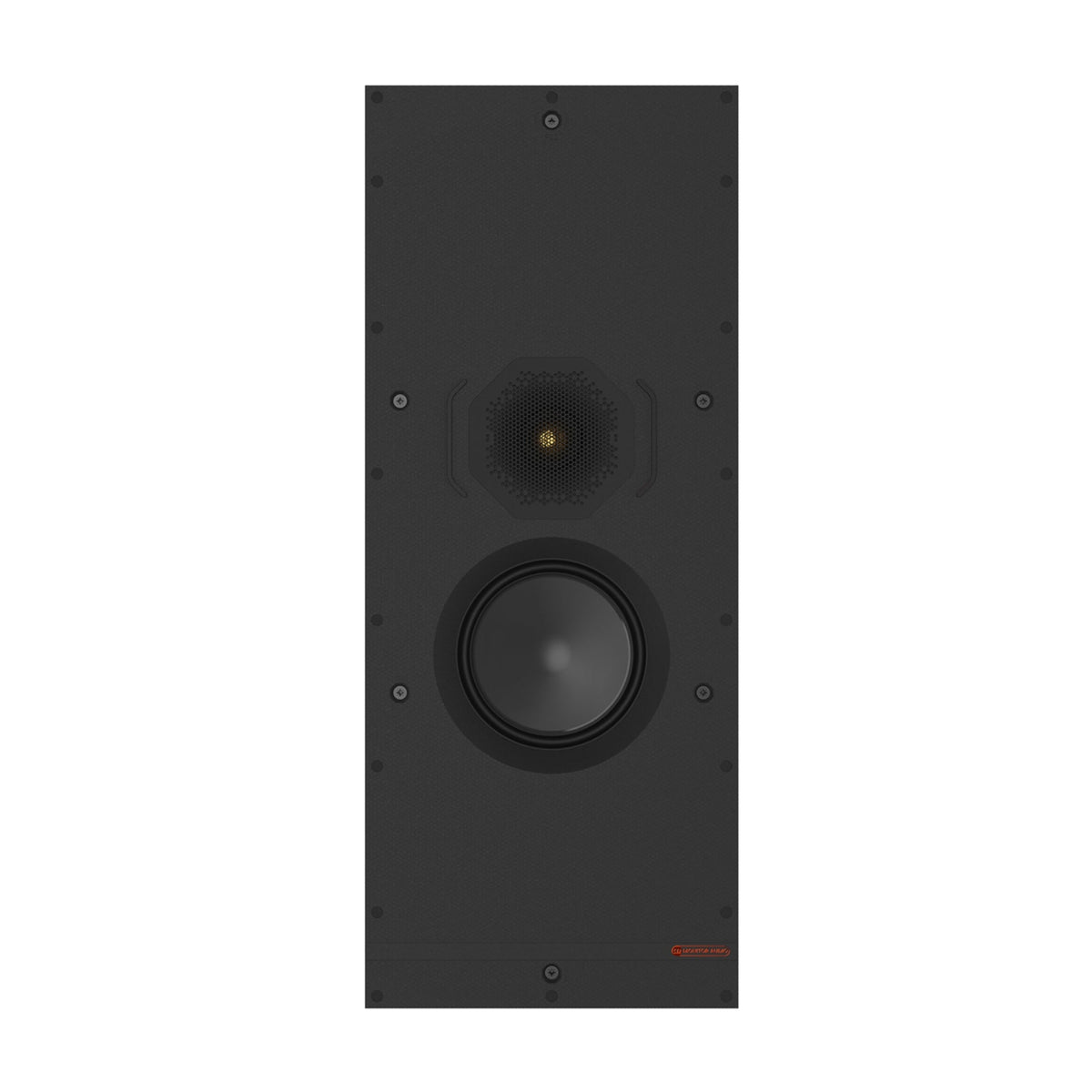

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 5" (127 mm) C-C
AM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Specifications
- System Format: 2–Way
- Channels: 1
- Frequency Response, Installed (-6dB): 40 Hz – 30 kHz
- Nominal Impedance: 8 ohm
- Minimum Impedance (20Hz to 20kHz): 6.5 Ohm @ 200 Hz (6.2 Ohm @ 20 kHz)
- Sensitivity (2.83Vrms@1m, Installed): 84 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted): 110 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 50 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 25 – 100 W
- Drive Unit Complement: 1 x 5" (127 mm) C-CAM mid-bass driver , 1 x 1" (25 mm) C-CAM tweeter
- Crossover Frequency: LF/HF: 2.5 kHz
- Mounting Depth: 85 mm (33/8")
- Cutout L x W: 527 x 198 mm (203/4 x 713/16")
- External Dimensions (Including Grille (H x W x D)): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
- Weight (each): 2.6 kg (5 lb 11 oz)
- Pre-Construction Bracket: WM-B
- Cabinet Finish: Matt black & Orange
- Sold As: Single Unit
