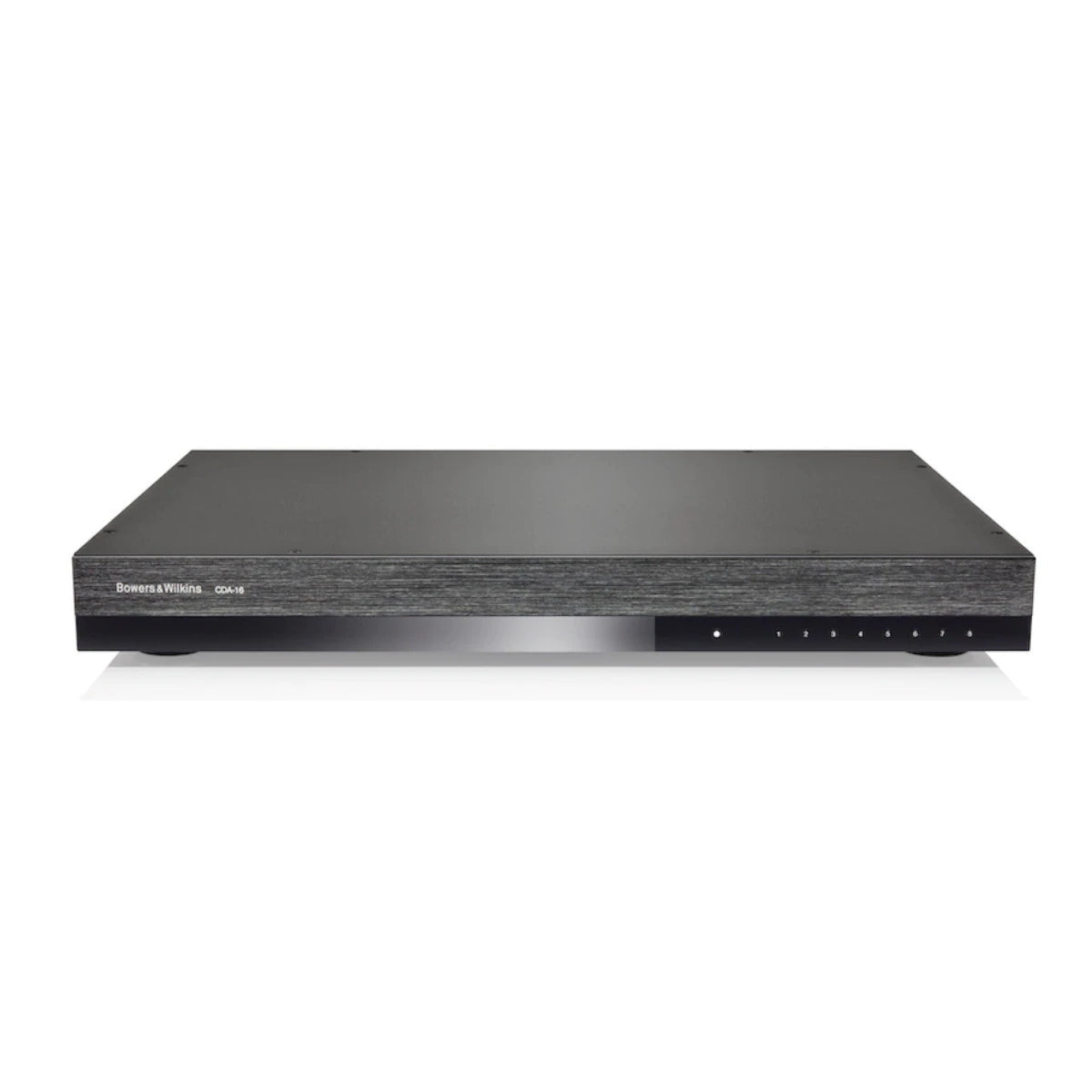

Bowers & Wilkins CDA-16 Distribution Amplifier
Ensure the best possible sound from your in-wall or in-ceiling Custom Installation loudspeakers with Bowers & Wilkins' powerful yet compact distribution amplifier.
The power to impress
Bowers & Wilkins' 16-channel distribution power amplifier can drive a mix of in-ceiling or in-wall speakers in up to eight rooms simultaneously, all from one compact, efficient component.
Mighty flexible
CDA-16
Bowers & Wilkins' CDA-16 distribution power amplifier can drive any Bowers & Wilkins custom installation speaker to new heights of performance. Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space thanks to its compact 1U design. Its configurable specification supports bridging of its Class D stereo channels into even more powerful mono outputs, if needed.
Specifications
Audio Specifications
|
Load impedance range
|
>3Ω per channel (>6Ω in bridge mode) |
|---|---|
|
Output Power per channel, non-clipped
|
>50W into 8Ω >100W into 4Ω |
|
Output Power bridge mode, non-clipped
|
>200W into 8Ω |
|
Output Power total, all channels
|
>400W short term >200W continuous average |
|
DC offset voltage
|
<50mV |
|
Frequency Response (-3dB)
|
<10Hz to >50kHz, any load impedance |
|
Frequency response accuracy 20Hz-20kHz
|
±0.5dB |
|
Signal to Noise ratio (Ref. 50W/8Ω)
|
>100dB A-Weighted |
|
THD+N (1kHz, 12.5W, 4Ω)
|
typically 0.05% |
|
Voltage Gain
|
34.9dB to - infinity, adjustable |
|
Input impedance
|
15KΩ |
|
Maximum input voltage
|
6.8V peak (4.8V rms sine wave) |
|
Signal sense threshold
|
2.5mV (independent of Gain setting) |
|
Wake-up time
|
<0.2s (If other zones active) <2s (From all zones inactive) |
|
Turn-off time
|
15 minutes from last signal detected |
|
12V trigger input threshold
|
typically 3V (recommended input is 5-15V) |
CONTROLS & INDICATORS
|
Front panel
|
1 x Power LED (unit active – White, Fault – Red) 8 x Zone status LEDs (Signal present – White, Fault – Red) |
|---|---|
|
Rear panel
|
8 x 2-position DIP switches (link to global input) 1 x 3-position switch (power mode: on, auto detect, 12V trigger) 8 x input gain control with Clip indicator LEDs |
CONNECTORS
|
Input
|
8 x RCA (pair) Phono socket, line in (global in shared with Zone 8) |
|---|---|
|
Output
|
1 x RCA (pair) Phono socket (global out) 8 x 5.08mm Pitch 4-way Phoenix Combicon style |
|
12V trigger control
|
1 x 3.5 mm jack - 12V trigger IN 1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through) |
POWER
|
Power consumption
|
<0.5W All zones inactive <45W All zones idling 300W maximum average 1,000W peak |
|---|---|
|
AC supply
|
100-240V 50/60Hz |
|
AC inlet
|
IEC C14, switched |
THERMAL
|
Thermal dissipation
|
1.7 BTU/hr (standby), 150 BTU/hr (Idle), 400 BTU/hr (max) |
|---|
DIMENSIONS
|
Height x Width x Depth
|
44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet] x 437 mm (17.2in) x 310 mm (12.2in) |
|---|---|
|
Net weight
|
44.5kg (9.9lb) |
|
Finish
|
Black |
ℹ Specifications
| Specifications | Details |
|---|---|
| Product | Bowers & Wilkins - CDA-16 - Power Amplifier |
| Amplifier Type | Distribution Amplifier |
| Number of Channels | 16 Channels |
| Output Power per channel | >50W into 8Ω; >100W into 4Ω |
| Output Power total, all channels | >400W short term;>200W continuous average |
| DC offset voltage | <50mV |
| Frequency Response | <10Hz to >50kHz, any load impedance |
| Frequency response accuracy | 20Hz-20kHz ±0.5dB |
| Signal to Noise ratio | >100dB A-Weighted |
| THD+N | typically 0.05% |
| Voltage Gain | 34.9dB to - infinity, adjustable |
| Input impedance | 15KΩ |
| Maximum input voltage | 6.8V peak (4.8V rms sine wave) |
| Signal sense threshold | 2.5mV (independent of Gain setting) |
| Wake-up time | <0.2s (If other zones active)<2s (From all zones inactive) |
| Turn-off time | 15 minutes from last signal detected |
| 12V trigger input threshold | typically 3V (recommended input is 5-15V) |
| Front panel | 1 x Power LED (unit active – White, Fault – Red)8 x Zone status LEDs (Signal present – White, Fault – Red) |
| Rear panel | 8 x 2-position DIP switches (link to global input)1 x 3-position switch (power mode: on, auto detect, 12V trigger)8 x input gain control with Clip indicator LEDs |
| Input Connectors | 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8) |
| Output Connectors | 1 x RCA (pair) Phono socket (global out)8 x 5.08mm Pitch 4-way Phoenix Combicon style |
| Power consumption | <0.5W All zones inactive<45W All zones idling300W maximum average1,000W peak |
| AC supply | 100-240V 50/60Hz AC inlet IEC C14, switched |
| Thermal dissipation | 1.7 BTU/hr (standby),150 BTU/hr (Idle),400 BTU/hr (max) |
| Dimensions | 44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet] x 437 mm (17.2in) x 310 mm (12.2in) |
| Net weight | 44.5kg (9.9lb) |
| Finish | Black |
