ℹ Product Information

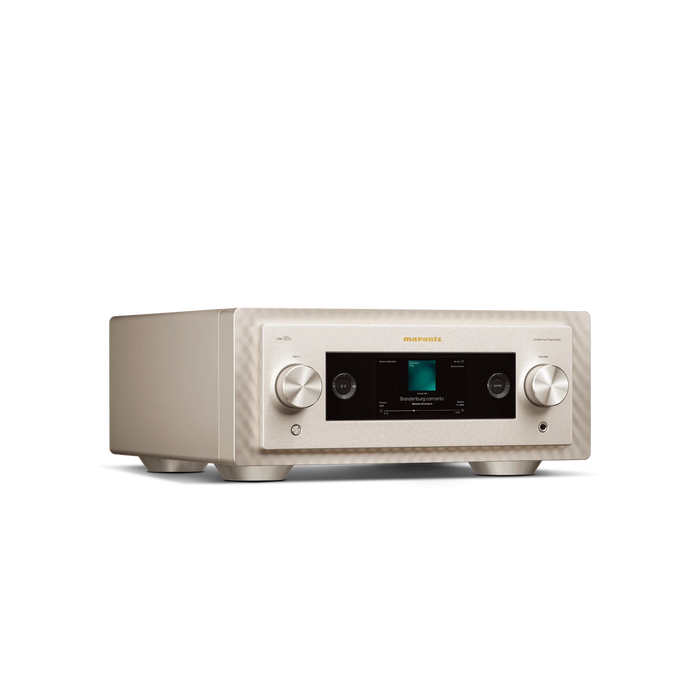

LINK 10n is a reference-class network audio player engineered using the same technology and artisanship that establish MODEL 10 and SACD 10 as class leaders.
- Hi-Res audio support
- HEOS® Built-in
- Hi-Res Color New HD TFT Color Display
- Newest HDAM and MM circuits
- HDMI ARC with CEC support
- 2.1 channel subwoofer output
Inspired by our past, engineered for our future
LINK 10n is a streamer and a fully featured preamplifier featuring a fully balanced architecture, analog and digital inputs, and a high resolution full-colour display.
The Best of the Best
From the triple-layer aluminium chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. It sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Sound Master Tuned
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.
Intuitive Display
LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code
Marantz Industrial Design
Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.
Preamplifier Function
LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.
Key Technologies
- HEOS Built-In
- Hi-Res Audio
- HDMI Arc
- Roon Ready
- HDAM
- MM Phono EQ
Specifications
General
- Unit (W × H × D mm): 440 × 192 × 472 (with antenna)
- Cabinet Size: 440 × 192 × 422
- Net weight: 33.3kg
- Panel Color: Black / Marantz Champagne
- Front (Centre) Pane: Aluminium
- Back-shell: Aluminum
- Front panel illumination: Yes (All sides, Dimmer)
- Side cover: Aluminum (Thickness: Max 15.8mm)
- Top cover (Centor) ventilation hole material: No
- Interior illumination: No
- Rear Panel: Triple layer Copper-plated
- Chassis Material: Copper-plated
- Bottom Layer / Bottom plate: Copper-plated
- Volume Knob: Solid aluminium (Bearing construction)
- Input Selector: Solid aluminium (Bearing construction)
- Foot: Solid aluminium with Copper
Audio
- Frequency Response: PCM 2Hz–50kHz (-3dB))
- Harmonic distortion: PCM 0.0004%)
- S/N: PCM 0.0004%)
- Dynamic range: PCM 0.0004%)
- Line Output Level: UNBALANCED : 2.0Vrms, BALANCED : 4.0Vrms)
- Headphone Output Level: 130mW / 32 ohms)
- Frequency Response (analog input): 5 Hz–100 kHz (+0dB/-3 dB))
- Harmonic distortion (analog input): 0.001% (20Hz–20kHz))
- S/N: PHONO (MC) : 76dB, HONO (MM) : 88dB, BALANCED : 122dB, LINE : 122dB)
- Phono Input sensitivity: MM : 8mV, MC : 80mV)
- Phono Input impedance: MC Low : 32 ohms, MC Mid : 100 ohms, MC High : 390 ohms, MM : 39 kohms)
- Power Consumption: 7W - Less than 0.3W (at Standby), Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB)
Audio Feature
- Output Circuit: New HDAM
- Power Transformer: Toroidal
- Pre Amplifier Circuit: New HDAM High Grade Full balance
- Volume: Electric (MUSES 72323) Variable gain
- Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
- Type of Tone Control: Electric
- Headphone Circuit: Discrete
- H/P Amp Gain Setting: Yes (Low / Mid / High)
- H/P On.Off Setting: H/P Off automatically, when in use
- DAC Circuit: New MMM-Conversion
- Dither: MMM-Stream (Dither 1, 2, Off)
- Noise Shaper: MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
- Digital Filter: MMM-Stream, Filter 1, 2 Selectable
- Jitter Reducer: Yes
- DAC Master Clock Design (No Support for Network Playback): Yes
- Asynchronous mode (for USB-B input): Yes
- Isolator (for USB-B input): Yes (Complete Isolation System Duo)
- Fixed Analog Output (RCA): Cinch × 1. Thick nickel plated independent terminals
- Pre / Variable Audio Output (RCA): Cinch × 1. Thick nickel plated independent terminals
- Fixed Balanced XLR Output: Yes (1 Pair)
- Pre/ Variable Balanced XLR Output: Yes (1 Pair)
- RCA Input: Cinch × 1. Thick nickel plated independent terminals
- Balanced XLR Input: Yes (1 Pair)
- Phono input: Yes (MM / MC). Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position). Thick nickel plated independent terminals
- Optical input / output (Maximum Support): 2 / 1 (on/off switchable) 44.1 kHz - 192 kHz
- Coaxial input / output (Maximum Support): 1 / 1 (on/off switchable) 44.1 kHz - 192 kHz
- HDMI input / output: No / Yes (ARC)
- Headphone Output :Yes (Φ6.3 ×1)
- Subwoofer: Yes with LP filter adjustable
Easy to Use
- App: HEOS app
- Remote Controller: 10 series universal Remote control
- Front Panel Display: New HD TFT Colour Display
- Display Language: N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian). U: (English/ French/ Spanish). K: ( Simplified Chinese/English). F: (Japanese/ English)
- Dimmer for Front Display: 20 steps
- Level meter: No
- Volume Display: 0 –100 / 0.5 step (default)-infinity/-99.5dB - 0dB / 0.5 step switchable
- Voice Assistant: Apple Siri, Google Assistant
- Control with App via Network Player (Use Remote Control Bus): No
- External Amp Control with App (Use Remote Control Bus): Yes
- Synchronously turn on amplifier and switch the input (Use Remote Control Bus): Yes
- HDMI CEC: Yes
- Remote Controller: RC004PMND
- Battery: Yes (AAA ×2)
- Power Cord: Yes (ALL region : Audio Grade : OFC)
- Other: Stereo RCA Cable ×1, Remote connector cable ×1, CoA card
